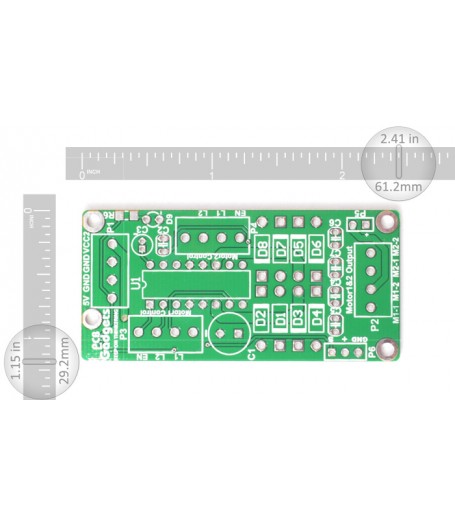

SN754410 Bare Break Out Board

This is a bare breakout board for the SN754410 h-bridge motor driver. You could build a motor driver by supplying your own parts:

The board accepts the following components:

• SN754410 DIP-16 chip.
• 8 mm electrolytic motor cap.
• 4 mm electrolytic 5v logic cap.
• D0-41 zener protection diodes.
• Motor MLCC Ceramic filter caps.
• 3.5mm pitch terminal blocks.
• 3mm LED indicator.

Documents:

Board Schematics
