Capsense Scroll Wheel PCB-5 Sensors

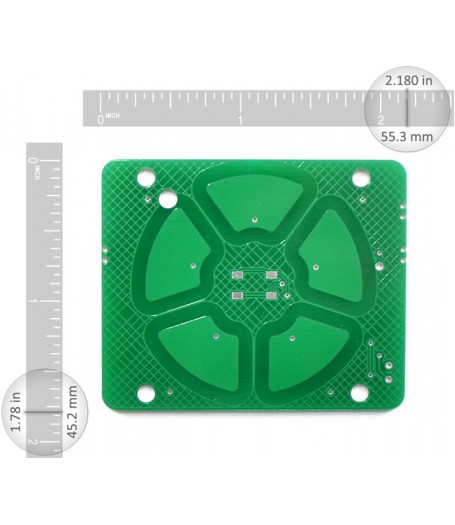

The capsense scroll wheel interface is a rectangular PCB with 5 copper sensor pads. You could connect your capacitive sensing circuitry to it via a 12 pin 0.1" spacing surface mount pads located on the back side of the PCB.

The Board has provision for a center momentary switch. A schematics and optional components recomendations are shown on the datasheet .

Specs:

• Datasheet

• Product Video
