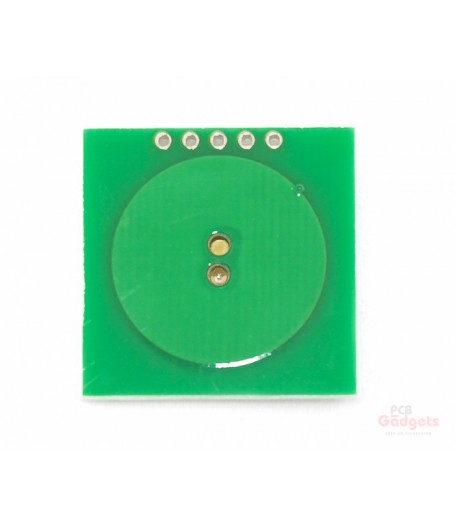

Capacitive Sensor W Digital Output.

CP-1 is a state of the art capacitive sensor with digital active high output.  Available in momentary mode. It's designed to drive a microcontroller input pin with either a logic high ( sensor is touched) or logic low ( sensor is inactive)

The board has a built in dual indication status LEDs that can be driven externally by applying 3.3V or 5V to the WH or OG terminal.

Specifications:

• Momentary capacitive sensor.
• Senses through non conductive material up to 6.5mm thick.
• Dual indication LEDs that can be driven on/off with external active high signal.
• Output can supply 1mA output.
• Board size 1" x 1"
